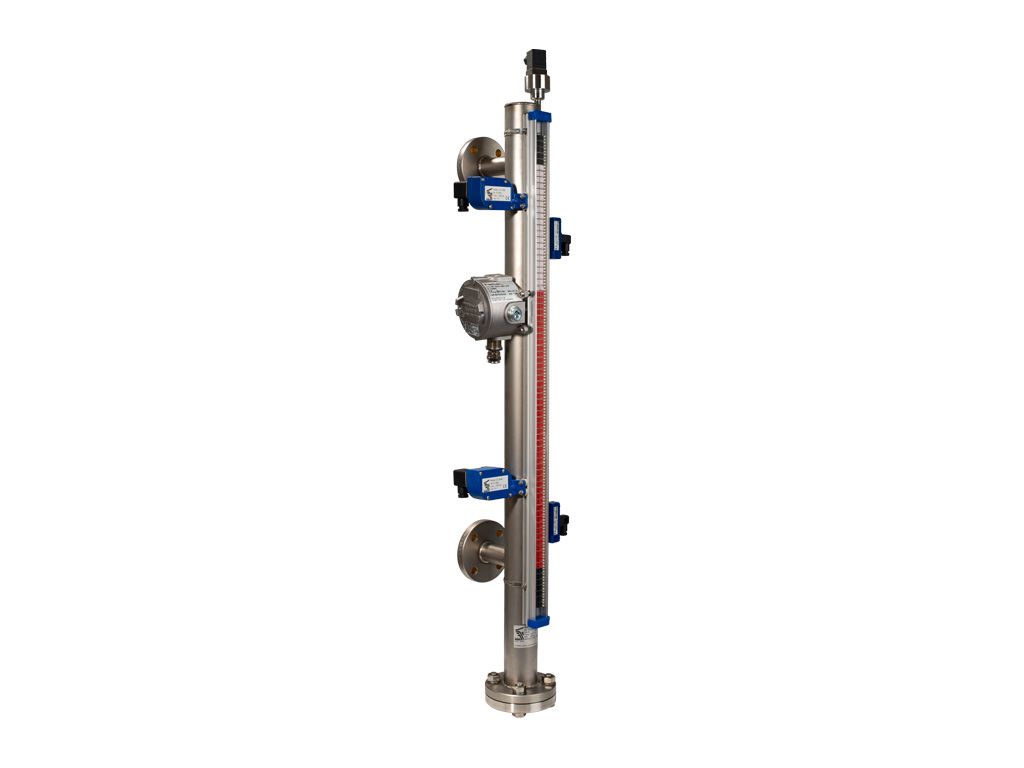

Magnetic level gauge
Price:
Liên hệ
Origin:
Spain
Views:
67488

Level gauge indication on liquid tanks, steam boilers etc. Display easy to read. No maintenance. Display can be rotated veryeasy to correct position. Also ideal for interface between oil/water. Free floating float

Product description

Indicator/Transmitter for liquid level of simple construction, suitable for high pressure and temperature conditions.
The level indication by magnetic transmission between the internal float magnet and the external indicator system ensures a complete sealing system with no possibility of leakage. Possibility of adjusting contact switches to the full scale. Excellent chemical and mechanical resistance.

Technical specifications

Local indication
Length
0,3 … 15 m (depending on manufacturing material)
Accuracy
±3 … 4 mm
Connections
DIN DN25 flanges
Thread fittings G1”/ 1”NPT
Others flanges and connections on request
By-pass mounted
Materials
EN 1.4404 (AISI 316L), PVC, PP, PVDF, PTFE
Options
Adjustable limit switches
4-20 mA analog output, Ex version on demand
HART ™ , Profibus or Fieldbus protocols on demand
