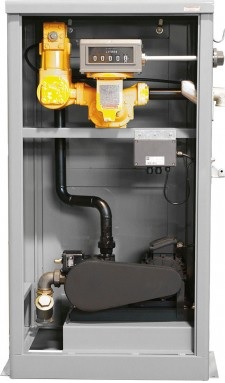

Trạm đo lưu lượng dầu xăng dầu

USE

• Supply kit for the high flow fuel supply suitable for the diesel, petrol and kerosene installations
• Designed for a “heavy duty use”.

Composed of:

CHASSIS:

• Made of steel. Brilliant epoxid paint finish · Weatherproof
• It has built in an anchorage base.

PUMP:

• BDP · self-suction vane pumps of high flow, self-suction, positive displacement, constant flow, noiseless and heavy-duty
  • Flow: 200 l/min (other available models up to 1,000 l/min)
  • Certificate: ATEX EExd IIBT4
  • Working pressure: 3 to 5 bar
  • Motor: 2.2 kW 230/400 VAC · II2G EExd IIC T5 with ATEX certificate ATEX · triphase · F Class · 2,860 rpm · IP-55 protection

METER:

• Volumetric mechanical meter with degasifier in order to avoid the gas measuring
• Accuracy ±0.3 % · Repetitivity: ≥0.05 %
• Manual reset
• Calibration system
• High accuracy and repetitiviy on the wide range of flow and high accuracy with constant flow
• Low maintenance, without metallic contact in the measuring chamber, long life service
• Aluminium body, Viton joints, litre register. Available in gallons.
• It is also available the pulser version.
• It includes a filter with a mesh of 170 or 400 μm (micron)

It is supplied with:

• 4 m delivery diesel hose of double layer with couplings in both ends
• PA-250 · Automatic nozzle
