Bộ điều khiển suất dầu tự động

GK-7 CONNECTION TO PC:

Communication with key maximum 200 services and 100 users

The equipment allows defining different situations to be adjusted to your requirements:

• User identification: we only identify the users. It is specially useful for cooperatives that want to identify only the person who is supplying.
• Vehicle identification: we only identify the vehicles. It is specially useful for installations where you only want to identify and control the vehicles and their consumption, without identifying the users.
• User and vehicle identification: It is the most complete system, offering a high level of security. It is specially useful for installations with a big number of users and/or vehicles, or where the users are often changing the vehicle.

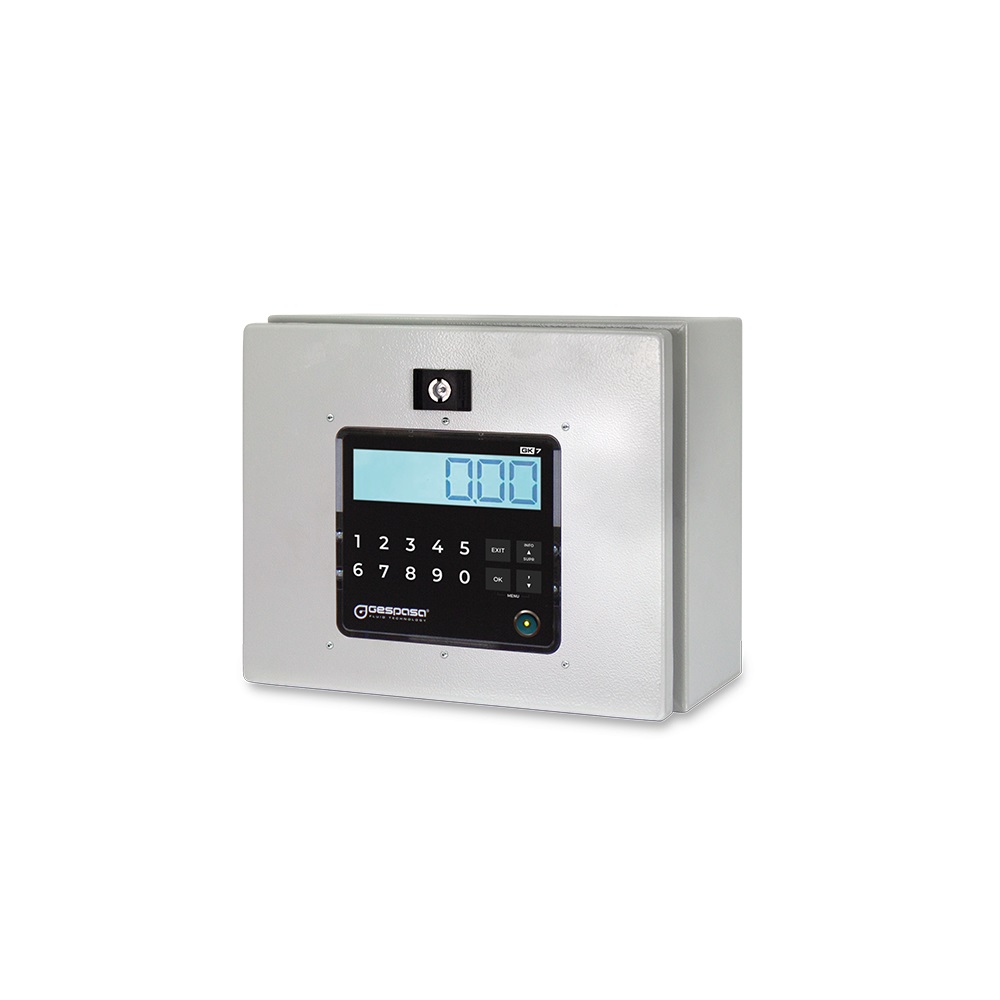

Technical data:

• Voltage: 230 or 110 VAC (available version at 12/24 VDC)
• Built-in supply inlet filter
• Frontal: LCD Display alphanumeric of 4 lines and 20 characters
• Keypad of 14 keys
• Consumption: 30 W
• Service Temperature: from 0 ºC to 40 ºC
• Relative Air Humidity: among 20 and 80 %
• Built-in identification key reader

Controller features:

It controls:

• Supply date and hour
• Users
• Vehicles
• Supplied litres by users and/or vehicles
• Car mileage (or hours) and consumption
• Tank litre stock
• The services are saved in memory and can be transferred to a computer.

The inquiry and configuration operations can be made from the computer through the GKSuite software or directly from the supply kit if you have the code or the Supervisor key. Then you can:

• Type or delete user and/or vehicles;
• Assign or change codes or user and/or vehicle keys;
• Calibrate the kit;
• Consult the done supplies;
• Consult and regularize the tank stock;
• Configure communication and other controller options
• If you want to manage the kit through a computer the kit potential increases in:
• a more comfortable and efficient management of all typing, deletion, modification, and consult operations because they are done from the computer;
• adding the information generated by the kit in a data base;
• the possibility of exporting the information managed by the program to Excel and .txt (text) formats for its export to other data base systems or programs;
• the information access control through permissions for different user profiles;
• Multiconsole: with a computer, the GKSuite software and as many licences as controllers you want to control; you could manage different equipment, both local and remote, in a centralised way;
• different communication systems to connect the computer with the controller or controllers: via memory key, cable, Ethernet or GSM modem
